Call HTTP Post

The Call HTTP Post component allows you to send REST API POST requests to a specified URL. This tool is useful for integrating with external APIs, automating workflows, and exchanging data between systems. You can provide the target URL, request data in JSON format, and specify custom headers. Additionally, you can define the expected response format, choosing from JSON, raw, or text. Once the request is sent, the system processes the response based on the provided parameters.

How to use:

Overview

The Call HTTP Post component allows you to send data to third-party services, trigger external processes, and integrate with web services that support HTTP POST operations. It enables REST API POST requests to external services, third-party APIs, and internal systems for comprehensive data exchange, workflow automation, and system integration within pipelines.

This component serves as the universal gateway for HTTP-based integrations, supporting authentication, custom headers, flexible data payloads, and multiple response formats. It handles both known public APIs (OpenAI, Stripe, Slack) with predictable structures and unknown private APIs with dynamic response analysis. The component returns comprehensive response metadata including status codes, headers, timing information, and formatted response data, enabling sophisticated error handling and conditional flow control.

Critical Response Structure

The Call HTTP Post component returns complex object {response: api_data, status_code: integer, headers: object, ok: boolean, reason: string, cookies: object, elapsed: time_object, encoding: string} where response contains actual API data and other fields provide request metadata for error handling and flow control. URL INPUT accepts endpoint URLs from input sources (user-provided), session variables (dynamically constructed), or hardcoded values for known APIs. For dynamic URL construction, use Call Custom Function before this component to build endpoints with path parameters, query strings, or variable components, then store in session for URL input. DATA INPUT accepts JSON request payloads from session variables (processed data from previous components), input sources (user-provided request bodies), or hardcoded values (templates for known APIs). For known APIs such as OpenAI, provide complete request structure examples with model parameters, prompts, and configuration. For unknown APIs, use placeholder structures or extract from user requirements. HEADERS INPUT manages authentication and custom metadata, accepting JSON objects from session (for dynamic token handling), input sources, or hardcoded templates. For known APIs, include authentication patterns: Bearer tokens for OpenAI or Claude ({'Authorization': 'Bearer YOUR_API_KEY'}), API key headers for various services ({'X-API-Key': 'YOUR_KEY'}), or custom authentication schemes. For unknown private APIs, use generic headers or keep empty with placeholder messages. RESPONSE_FORMAT INPUT determines parsing strategy: 'json' for structured API responses requiring field extraction, 'text' for plain text APIs or debugging unknown responses, 'raw' for binary data or advanced processing needs.

Known API Handling Scenarios

For OpenAI, Claude, Stripe, Slack, or other recognizable services, provide accurate endpoint URLs, complete request body structures with realistic parameters, proper authentication header formats with placeholder keys, and expected response format selection. Include common API patterns such as chat completions, file uploads, webhook notifications, or data retrieval operations.

Unknown API Handling Scenarios

When users mention private endpoints, internal systems, or unrecognized services, avoid hallucination by using placeholder messages such as 'Configure your endpoint here', generic request body templates, empty or minimal headers, and conservative response format selection. Never assume API structure or invent endpoints for unknown services.

Error Handling and Flow Control

The component's status_code output enables precise error handling through Check Condition components. Success flows check result.status_code for 200-299 range, error flows handle 400-500+ codes with specific error processing. The ok boolean provides quick success/failure determination, while reason field contains HTTP status descriptions for user feedback.

Response Data Processing Strategies

• For known APIs, design specific data extraction using result.response.field_name patterns to access expected response fields.

• For unknown APIs, implement response analysis using Generate Text components to examine result.response structure and extract meaningful data automatically.

The flexible response processing enables both precise field extraction and intelligent content analysis.

Mluti API Integration Patterns

The component supports sequential API calls using session variables to pass data between HTTP Post components, conditional API branching based on response content or status codes, authentication workflows where first API call retrieves tokens for subsequent calls, and complex integration scenarios requiring multiple external service interactions.

Authentication and Security

The component supports various authentication methods including Bearer tokens in Authorization headers, API keys in custom headers or query parameters, Basic authentication with encoded credentials, and OAuth token handling through dynamic header construction. Always use placeholder values for sensitive credentials, allowing users to replace with actual keys during deployment.

Key Terms

When to Use

• Use when you need to send data to an external service or API.

• Ideal for situations where you need to create or update resources on external systems.

• Helpful when integrating your Pipeline Builder workflow with third-party web services.

• Use when you need to trigger external processes or workflows.

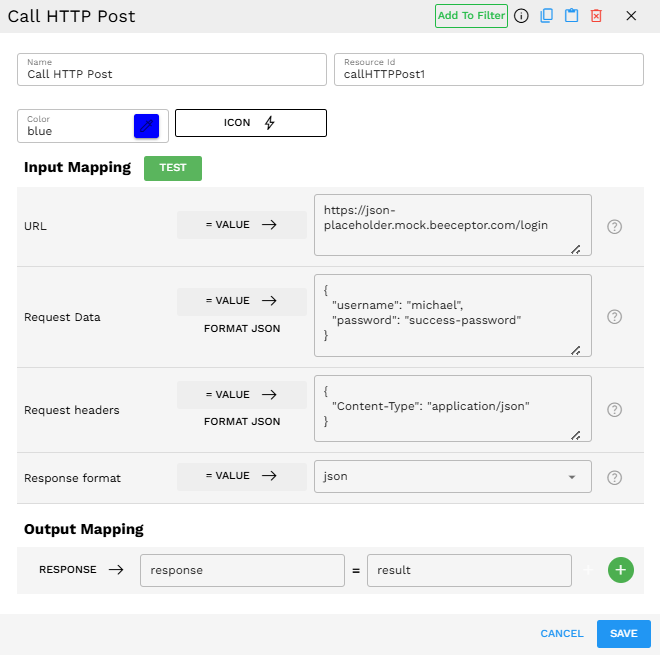

Component Configuration

Input Mapping

Output Mapping

The output mapping allows you to specify how the response from the HTTP Post call should be made available to other components in your Pipeline Builder workflow. Typically, you would map the "response" from the component to a variable name of your choice.

After mapping, other components in your workflow can access the API response data through the variable name you specified (such as result)

How It Works

1. The component takes your URL and prepares to send a POST request to that endpoint.

2. It formats your Request Data as JSON to be sent in the request body.

3. The component applies default headers (content-type: application/JSON, Accept: /, Connection: keep-alive).

4. If custom Request Headers are provided, they are merged with (and can override) the default headers.

5. The POST request is executed with the configured URL, data, and headers.

6. The response from the server is processed according to the specified Response Format.

7. The component returns a comprehensive result object containing the response data and metadata.

Example Use Case

Scenario: Authenticating a user with a login API

Configuration:

• URL: https://json-placeholder.mock.beeceptor.com/login

• Request Data:

  {"username":"michael","password":"success-password"}

• Request Headers:

  {"Content-Type":"application/json"}

• Response Format: json

Process:

1. The Call HTTP Post component sends the login credentials to the API endpoint.

2. The API validates the credentials and generates an access token.

3. The API returns a JSON response with login status and token.

4. The component processes this response and returns it in the result object.

5. The Output Mapping connects the response from the component to a result variable that subsequent components can use.

Example Response:

Output Format

The component returns a comprehensive result object containing both the API response and metadata about the request. The response field content varies based on your selected Response Format:

Regardless of the Response Format, the result object contains:

• response: The actual data returned by the API (format depends on the Response Format setting).

• status_code: The HTTP status code returned.

• cookies: Any cookies set by the server.

• elapsed: How long the request took to complete.

• encoding: The character encoding of the response.

• headers: Headers returned by the server.

• ok: Boolean indicating if the request was successful (status code 200-299).

• reason: The HTTP reason phrase corresponds to the status code.

Best Practices

• Include appropriate authentication in your headers when calling secured APIs.

• Use Custom Functions for complex request preparation, dynamic endpoint construction, or response data transformation.

• Implement Check Condition components for robust error handling based on status codes and response validation.

• Use Generate Text for intelligent response analysis when API structure is unknown or dynamic.

• Chain multiple Call HTTP Post components for complex multi-step API workflows with proper session variable management.

Troubleshooting
