Contineo Platform

Check Condition

The Check Condition component evaluates a specified condition and determines the pipeline flow based on the result. Users can define a condition by specifying a field, selecting a condition type such as EQUALS or NOT_NULL, and optionally providing a value for comparison. Additionally, custom code can be used for more advanced condition checks. When the condition is evaluated, the pipeline proceeds according to true or false path logic.

How to use

Overview

The Check Condition component evaluates a specified condition and directs the Pipeline Builder flow based on the result of that evaluation. It acts as a decision point in your pipeline, allowing you to create conditional logic paths.

This component is exclusively used when pipelines require branching or conditional routing based on dynamic criteria, enabling different processing paths depending on the evaluation result. The component can access file paths, session data, request parameters, or any pipeline context to perform condition checks such as file format validation, data value comparisons, content analysis results, or complex business rule evaluations. It serves as the decision-making component that determines which branch of the pipeline should execute next, making it essential for scenarios such as separating image files from documents, validating data quality before processing, checking API response statuses, or implementing multi-criteria decision trees.

Note:

Unlike other components, this strictly returns boolean values (True/False) and should only be used when conditional flow control is explicitly required, not for general data processing or transformation.

Key Terms

Term	Definition
Condition	A logical expression that evaluates to true or false.
Conditional Branching	The process of directing pipeline flow based on condition results.
Custom Function	User-defined Python code that performs custom condition evaluation.

When to Use

Use when you need to create different processing paths based on data values.
Ideal for validating input data before proceeding with further processing.
Helpful when you need to handle error cases or exceptions separately.
Use when implementing business rules that require logical decision-making.

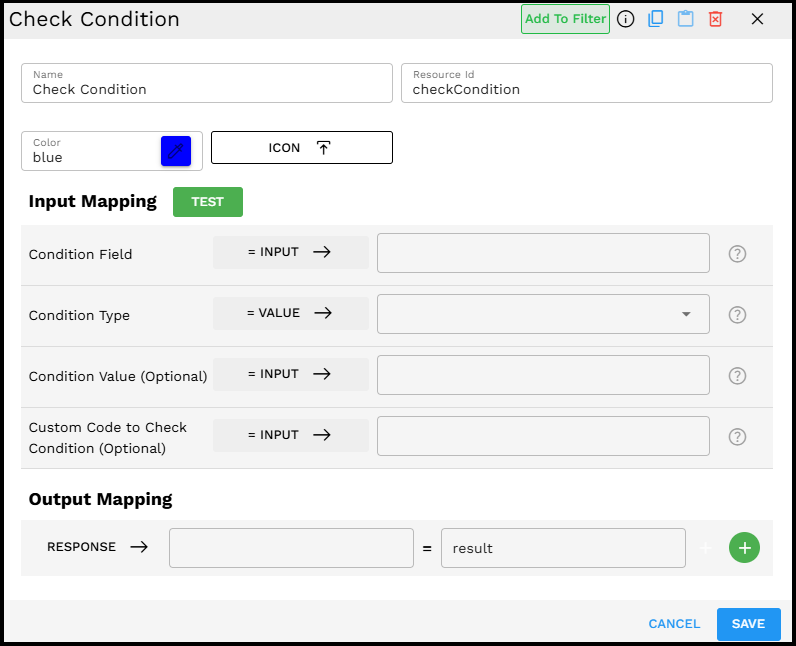

Component Interface

Component Configuration

Required Inputs

Input	Description	Data Type	Example
Condition Field	Specifies the field from the input data for which the condition is to be checked	Text	`data.user.age`
Condition Type	Defines the type of condition to evaluate (for example, EQUALS, NOT_NULL)	Enum	`GREATER_THAN`

Optional Inputs

Input	Description	Data Type	Example
Condition Value	The value to compare against when using condition types like EQUALS, and GREATER_THAN.	Text	`18`
Custom Code to Check Condition	Python code that performs custom condition evaluation for complex scenarios.	Text (Python)	`python<br>class {className}:<br> def execute(self, message):<br> pipeline_id = message.get_arg('pipeline_id')<br> charts_list = message.request.session.get_session_data(<br> pipeline_id, "charts_widgets_list")<br> <br> if not charts_list or charts_list is None:<br> return False<br> return True`

Condition Types

Condition Type	Description	Requires Value
NOT_NULL	Check if the field value is not null.	No
NOT_EMPTY	Check if the field value is not empty (not null, undefined, empty string, empty array).	No
EQUALS	Check if the field value equals the specified condition value.	Yes
NOT_EQUALS	Check if the field value does not equal the specified condition value.	Yes
GREATER_THAN	Check if the field value is greater than the specified condition value.	Yes
SMALLER_THAN	Check if the field value is smaller than the specified condition value.	Yes

Output Paths

Path	Description	Color
On Success	This path is followed when the component completes its evaluation (regardless of the condition result).	Green
If True	This path is followed when the evaluated condition returns true.	Red
If False	This path is followed when the evaluated condition returns false.	Blue

How It Works

The component extracts the value of the specified field from the input data.
It evaluates the condition based on the selected condition type and value.
If custom function code is provided, it executes this Python code instead of using the built-in condition types.
Based on the evaluation result (true or false), the pipeline flow continues along the corresponding path.
The On Success path is always triggered regardless of the condition result, indicating that the component completed its evaluation.

Example Use Case

Scenario: Age verification in a user registration pipeline

Configuration:

Condition Field: user.age
Condition Type: GREATER_THAN
Condition Value: 18

Process:

When executed, the component extracts the age value from the user data.
It evaluates whether the age is greater than 18.
If user.age > 18, the pipeline follows the "If True" path, which might lead to a successful registration component.
If user.age ≤ 18, the pipeline follows the "If False" path, which might lead to an age restriction notification component.
The "On Success" path would confirm that the age verification check was completed successfully.

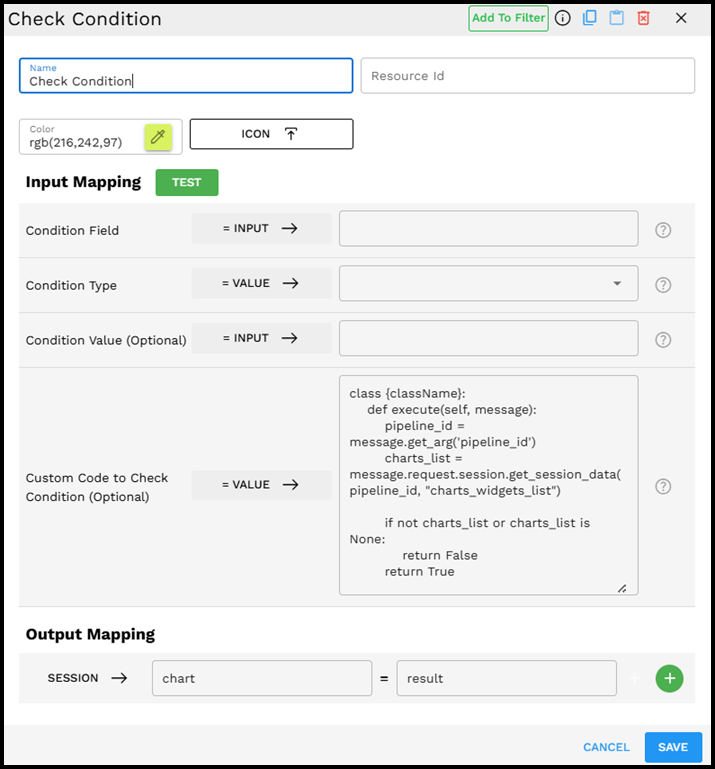

Advanced Example: Using Custom Code

Scenario: Checking if charts exist in the session data

Configuration:

Custom Code to Check Condition:

          class {className}:

           defexecute(self, message):

           pipeline_id = message.get_arg('pipeline_id')

           charts_list = message.request.session.get_session_data(

           pipeline_id, "charts_widgets_list")

           ifnot charts_list or charts_list isNone:

           returnFalsereturnTrue

Process:

The component executes the custom Python class with the input message.
The code retrieves the pipeline_ID from the message arguments.
It then attempts to get the charts_widgets_list from the session data.
If charts_list does not exist or is None, the function returns False and the pipeline follows the "If False" path.
Otherwise, it returns True and the pipeline follows the "If True" path.

Best Practices

Use descriptive names for your Check Condition components to indicate what is being evaluated.
For complex conditions, use the custom Python code option instead of trying to chain multiple Check Condition components.
Include error handling in your custom Python classes to prevent pipeline failures.
When comparing string values, be mindful of case sensitivity in your conditions.
Use the "On Success" path for logging or monitoring purposes, especially in complex pipelines.

Troubleshooting

Issue	Possible Cause	Solution
Condition always evaluates to false	Incorrect field path or the field does not exist in the input data.	Verify the field path and check the input data structure to ensure the field exists
Type mismatch in comparison	Comparing different data types (such as string vs. number)	Ensure the condition value matches the expected data type of the field, or use type conversion in custom Python code.
Custom function errors	Syntax errors or runtime exceptions in the Python custom code.	Test your Python class separately, add error handling, and check for None values.
Unexpected condition results	Edge cases in data or complex logical errors.	Add logging to trace the actual values being evaluated and check for edge cases.

Limitations and Consideration

Type Conversion - The component does not automatically handle type conversion. Ensure that your condition value matches the expected type of the field.
Complex Objects - When working with nested objects or dictionaries, use appropriate Python notation in the condition field to access nested properties. For very complex structures, consider using custom Python code.
Performance Impact - Complex custom Python classes may impact pipeline performance. Keep your code efficient for production pipelines.
Error Handling - If the specified field does not exist, the component typically evaluates the condition as false. Add explicit error handling in critical workflows.

Integration with Other Components

The Check Condition component works well with:

Data Transformation components - To prepare data before condition evaluation.
API Request components - To make different API calls based on condition results.
Notification components - To send different notifications based on condition results.
Loop components - To implement conditional looping logic.

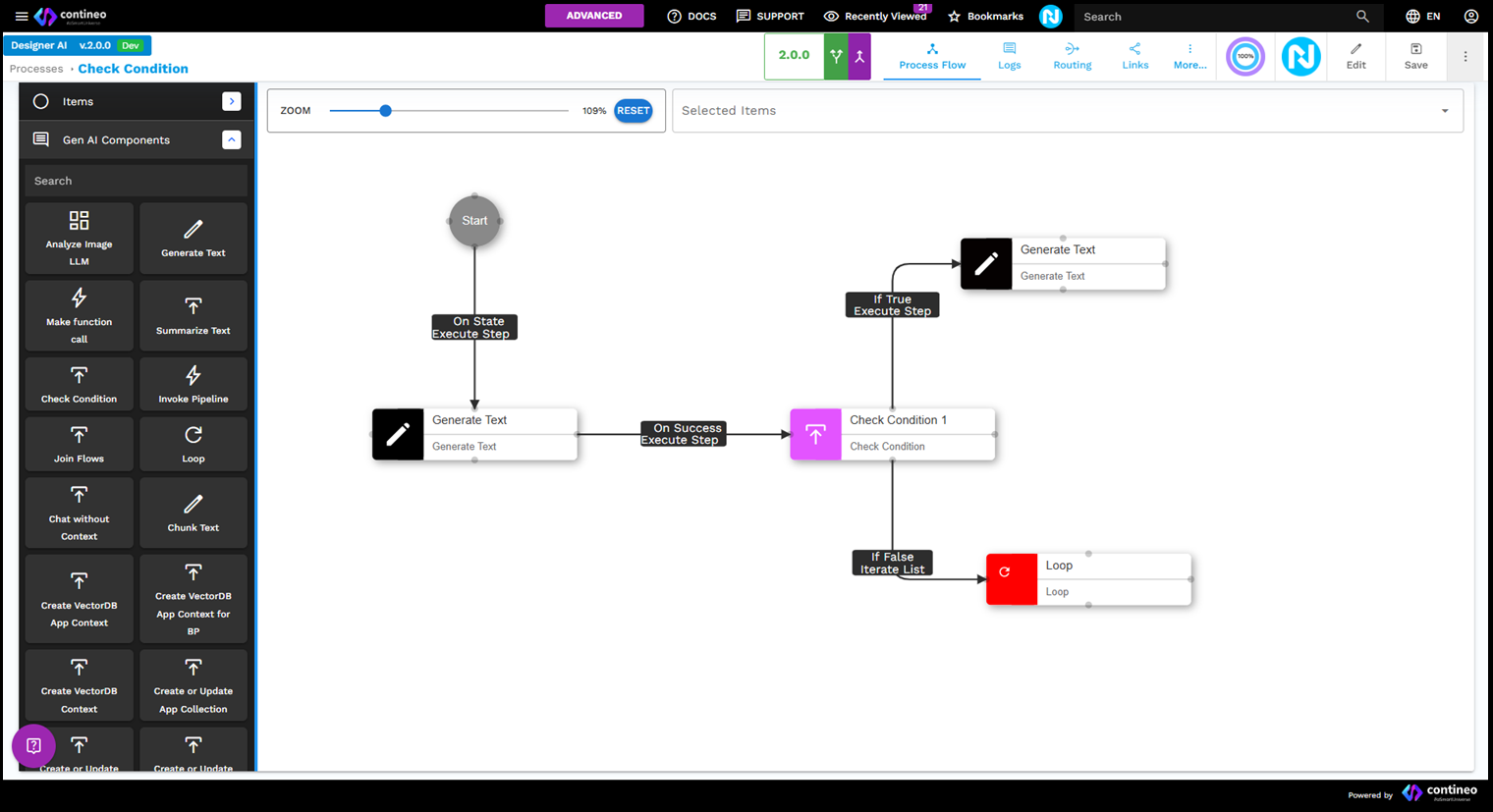

Sample Pipeline Flow

The following example shows how the Check Condition component can be used in a Loop flow in the Pipeline Builder:

In this example:

The Check Condition component evaluates a condition after a Generate Text step.
If the condition is False, the flow continues to a Loop component for iterative processing.
If the condition is True, the flow continues to another Generate Text component.
This pattern demonstrates how Check Condition can be used to create branching logic in your pipeline.
